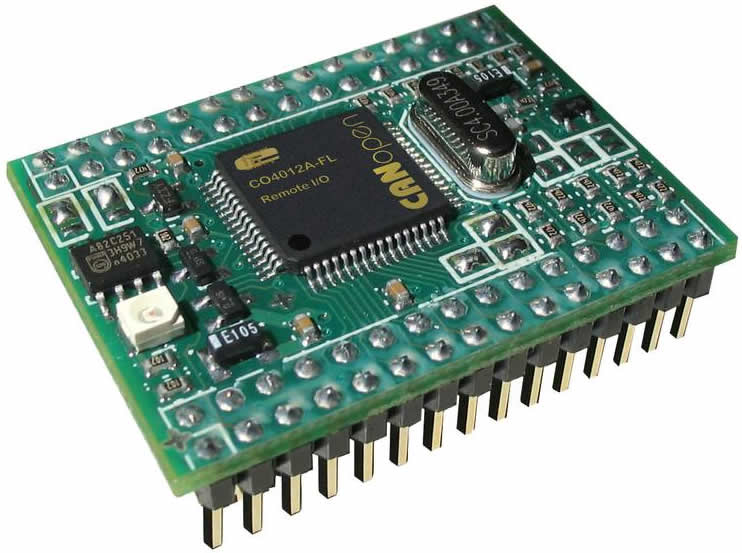

我們的CO4012-E/A板為CANopen設備提供所有必需的功能。CANopen協議軟件實現已經做完并且經過測試，所以不需要附加的設備編程。節點數、波特率和設備配置的設置由外部電阻實現。所有模塊都裝備CAN收發器，因此無需附加任何硬件就可把它連接到CAN總線上。
系統
- 16 bit CPU
- supply voltage?5V DC
- temperature range -40 .. +105°C
- plug-in module 60 pins
- measurements 41x31x18 mm
數字/模擬輸入/輸出
- in-/ outputs? 32 max.
- filters for digital inputs configurable
- inputs digital 5V (max.) 32?of 32
- outputs digital 5V (max.) 32 of 32
- inputs analog 0 .. +5V (max.) 8 of 32
- supported modes:
mode 0: 16 digital IN / 16 digital OUT
mode 1: 32 digital IN
mode 2: 32 digital OUT
mode 3: 8 analog IN
CANopen
- CAN-Bus V2.0b
- CAN-baudrates?up to 1Mbit
- nodenumber?1 .. 127
- CANopen draft standard DS301 V4.0 / DS401 V2.0
- CANopen diagnosis LEDs (LED outputs)
- PDOs receive/transmit 1/2
- SDOs server/client 1/0
- PDO-event timer
- PDO-inhibit timer
- PDO-transmission?mode?event triggered, synchron,?
asynchron, cyclic, anti cyclic, remote frame
- variable PDO-identifier
- dynamic PDO-mapping
- emergency
- nodeguarding/lifeguarding/heartbeat
- object dictionary / configuration storable
- minimum boot up
- EDS-file
|
功能
- output watchdog
- output overload monitoring
訂貨說明
| 貨號 |
名稱 |
| EZ00000.2013.01 |
CO4012A-BD |
| EZ00000.2014.01 |
CO4012AE-BD (-40°C .. 105°C) |
相關產品
單芯片: CO4012A-FL
帶PWM輸出:
CO4017A-BD
測試用:評估板
需要上述產品的詳細資料？請通過sales@hkaco.com聯系我們。 |
