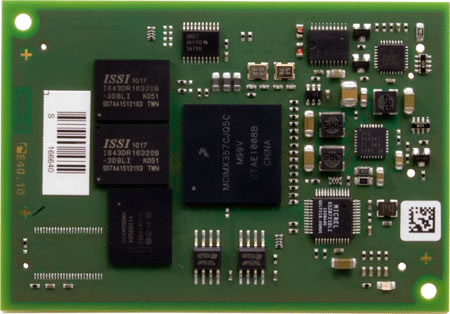

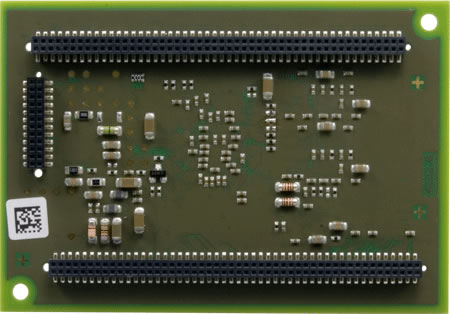

PLCcore-iMX35 CODESYS

PLCcore-iMX35 CODESYS是一款強大的軟-PLC,可作為基板用于你自己的HMI-設備。The PLC Runtime System is CODESYS V3,它最少化必需外設連接性可簡化特定應用基板的設計。因為有各種本地輸入和輸出以及板載支持的通訊接口,PLCcore-iMX35可通過多個網絡接口以常用方式連接到它的外圍環境。附加應用領域包括能夠執行獨立的Linux應用程序,并行于PLC運行時系統。

使PLC用作即插即用核心模塊,具有小尺寸,能夠極大減少用戶特定控制開發的時間和成本。PLCcore-iMX35 CODESYS也特別適用于用作定制HMI設備的基礎部件和智能網絡節點用于分散處理過程信號 (CANopen和UDP)。

模塊特點

PLCcore Firmware: IEC61131-3
PLCcore-iMX35 CODESYS: IEC61131-3 runtime kernel pre-installed, Shared process image, CiA302/314 compliant CANopen manager, Program download via Ethernet
PLCcore-iMX35 CODESYS HMI: IEC61131-3 runtime kernel pre-installed, Shared process image, CiA302/314 compliant CANopen manager, Program download via Ethernet
Controller: Freescale i.MX357 with ARM11 Core
System Clock: 532 MHz
RAM: 128MiB DDR2-SDRAM
FLASH: 128MiB NOR
On-board Peripherals: DMA, MMU, hardware watchdog, temperature sensor, RTC
Fast Ethernet: 1x 10/100Mbps, on-board PHY
CAN: 2
UART: 3
USB: 1x USB 2.0, 12Mbps full-speed
1x OTG
SPI/I2C: 1/1
Mass storage: MMC/SD-card signals on board-to-board connector
LCD: TFT-LCD interface brought out via CMOS , resolution 800x600 max. 24bit
Others: S/PDIF
Operating Conditions: Temperature: -40°C…+85°C
Humidity: 10-90% RH, non-condensing
Power Supply: 3.3V +/- 5%, 0.3A max.
Dimensions/Weight: 78 x 54 x 7,2 (L x W x H in mm), 20g
Board-to-board connector: 2x 2x 50 pin header socket, 1.27 mm pitch
Available on board-to-board connector: 2x CAN, 3x ASC, 2x USB, I²C, SPI, 2x SD-card, 18x GPIO, Ethernet, TFT-CMOS, PWM/DIO, Timer/Counter/DIO
RoHS compliant: yes
Operating System: Linux, Qt framework necessary for HMI
Integrated Development Environment (IDE): CODESYS V3.5 SP4 Patch4



說明

The PLCcore-iMX35 CODESYS is an IEC 61131-3-programmable Soft-PLC with integrated target visualization. That's why it represents itself as the ideal base component for designing user specific HMI devices. The PLCcore-iMX35 CODESYS provides 16 digital inputs and 10 digital outputs for direct connection to local peripherals. Due to the various communication interfaces such as Ethernet, CAN and serial interfaces, furthermore remote extension equipment can be connected. The PLC Runtime System supports data exchange by several CODESYS libraries for CANopen, CAN Layer 2 and serial COM interfaces.

The PLCcore-iMX35 CODESYS allows for direct connection of CMOS and LVDS displays. The integrated target visualization is based on the CODESYS-internal Visualization Manager, which uses Qt components. It supports a touchscreen, a USB mouse as well a USB keyboard as input devices. The necessary Qt components for the visualization are provided by the Linux BSP and are available to the PLC Runtime System. A separate installation of the Qt components as handled in former systems (e.g. PLCcore-9263 CODESYS) is no longer necessary.

Only a minimal peripheral wiring is necessary to apply the PLCcore-iMX35 CODESYS on an application-specific baseboard. That's why devices based on this core module can be designed very cost-efficiently.

Additional arbitrary Linux applications can be executed on the PLCcore-iMX35 CODESYS in parallel to the PLC Runtime System. For data exchange between a Linux application and the PLC Runtime System, inter process communication mechanisms such as FIFOs or Shared Memory are available. Furthermore, the PLC has full access to the file system. On demand, data can be written to or read from any mounted media.

The PLCcore-iMX35 CODESYS is equipped with an on-board Flash of 128 MiB, whereby a memory range of 90 MiB is freely available as mass storage for the PLC program, for visualization data and for process data. Due to the usage of UBIFS (Unsorted Block Image File System) with active journaling, the file system keeps in a consistent state even in case of an unexpected power supply crash.

The PLC Runtime System allows for usage of one CAN interface as CANopen-Manager. A CAN Layer 2 communication can be performed over both CAN interfaces. The therefor necessary function blocks and functions are implemented in the CODESYS-internal libraries. The integrated CAN controllers are equipped with a receive FIFO. That's why even applications with permanent CAN bus load up to 70 percent can be implemented without any packet loss of CAN messages.

訂貨信息

貨號 說明
3390096 PLCcore-iMX35 - CODESYS
incl. CODESYS, Linux, program download via Ethernet
3390097 PLCcore-iMX35 - CODESYS HMI
incl. CODESYS, Linux, CODESYS Target Visualization, program download via Ethernet





相關文檔

模塊上系統 - ECUcore概述 CANopen Tool Chain - Product Flyer
PLCcore概念 - 白皮書 CANopen Tool Chain - Product Flyer
ECUcore-iMX35 - 硬件手冊 (EN) CANopen Tool Chain - Product Flyer

相關產品

開發包PLCcore-iMX35 CODESYS »
ECUcore-iMX35 »
