首頁 > 模塊上系統 > 名稱分類 > ECUcore-iMX35開發包

ECUcore-iMX35開發包



是一款多功能、全面的開發包,并且價格特別實惠。基于緊湊PLC和集成的目標可視化,它使用戶能夠自己開發專用HMI設備。

開發包ECUcore-iMX35能夠確保快速又無問題地調試ECUcore-iMX35模塊上系統。因此,它集成了所有硬件和軟件組件,都是創建自己HMI應用的必需組件:ECUcore-iMX35 SOM、相應的開發板包含QVGA LCD顯示器、4x4矩陣鍵盤、I/O外設和多種接口、Linux開發系統以及其它附件。該款開發包是基于ECUcore-iMX35開發用戶專用HMI應用的理想平臺。



說明

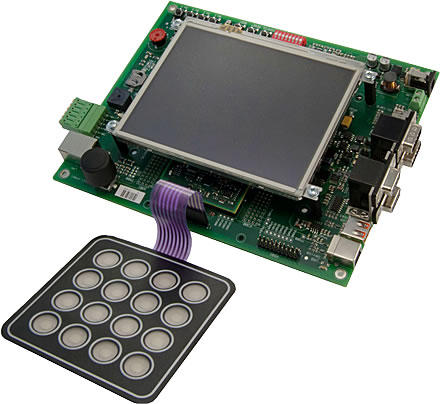

Development Board ECUcore-iMX35
The Development Board included in the Kit facilitates quick commissioning of the ECUcore-iMX35 and simplifies the design of prototypes for user-specific HMI applications based on this module. The Development Board comprises different power supply possibilities, a 320x240 pixel QVGA LCD Display, Ethernet interface, 2 CAN interfaces, 2 serial interfaces, 4 push buttons and 4 LED as control elements for digital in- and outputs and it comprises a Scroll Wheel and an connector for a 4x4 Matrix Keypad. Signals that are available from plug connectors of the ECUcore-iMX35 are linked to pin header connectors and enable easy connection of own peripheral circuitry.



VMware Image Linux - ECUcore-iMX35
The Linux development system included in the Kit serves as software development platform and as debug environment for the ECUcore-iMX35. It comes with a ready-to-use development environment for C/C++ application development, pre-installed on a VMware virtual machine. The player required to start the virtual machine is available free of charge. The provision of virtual machines for application development provides a number of advantages to the end-user. Installation of new software on your development PC is reduced to the VMware player. Installation of the ECUcore development environment and related project files is not necessary and therefore eliminates a number of possible pitfalls for new users. You can easily keep a working copy of your virtual machine for backup. In case of data loss you can switch to your backup virtual machine and you’ll be productive again in no time.

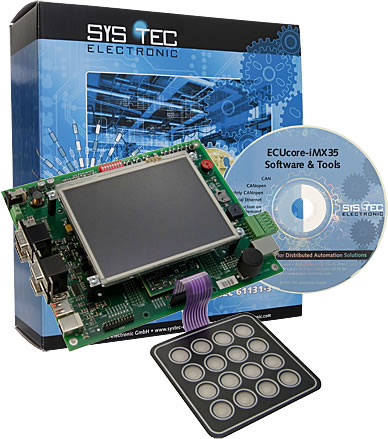

開發包ECUcore-iMX35組成

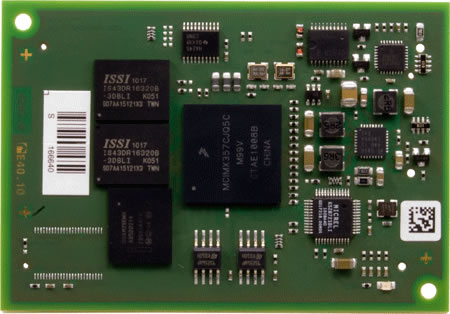

  • ECUcore-iMX35 - System on Module
  • Development Board ECUcore-iMX35
  • 5.7“ TFT-LCD touch display
  • 4x4 Matrix Membrane Keypad (unlighted)
  • International power supply, 12VDC, 1500mA
  • RS232 cable, 1.8m
  • FTP patch cable Cat.5e, 2.0m
  • CAN cable for 5 nodes, incl. 2x 120Ohm termination plugs
  • Leverage tool
  • ESD handling instructions
  • VMware image with Linux cross-development tool chain for ECUcore-iMX35



訂貨信息

貨號 說明
KIT-169 Development Kit ECUcore-iMX35
ECUcore-iMX35, Development Board ECUcore-iMX35, 5.7“ TFT-LCD touch display, 4x4 Matrix Membrane Keypad, Power supply, Set of cables, DVD VMware Image Linux - ECUcore-iMX35

相關文檔

模塊上系統 - ECUcore概述 CANopen Tool Chain - Product Flyer
ECUcore-iMX35 - 系統手冊 (EN) CANopen Tool Chain - Product Flyer
ECUcore-iMX35 - 硬件手冊(EN) CANopen Tool Chain - Product Flyer


相關產品

ECUcore-iMX35 »
