首頁 > 模塊上系統 > 名稱分類 > 開發包 PLCcore-E660

開發包 PLCcore-E660

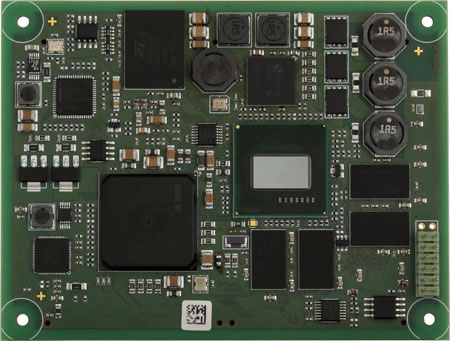

開發包 PLCcore-E660 確?焖儆譄o問題地調試 PLCcore-E660。因此,它包含了所有必需的硬件和軟件,可輕松創建自己的應用:PLCcore-E660 SOM、相應的標準 AT 構成要素開發板及I/O外設、大量接口和連接DVI監視器的圖形適配器以及 OpenPCS IEC 61131 編程系統及集成的 SpiderControl HMI 編輯器用于創建圖形頁面。

除了I/O外設之外,開發板還提供按鍵和 LED 等等,所有接口支持PLCcore-E660 SOM及它們標準的連接器例如 USB、RJ45 或 D-Sub 9 連接器。

說明

Development Board PLCcore-E660
The Development Board included in the Kit facilitates quick commissioning of the ECUcore-E660 and simplifies the design of prototypes for user-specific applications based on this module. The Development Board features several possibilities for power supply, two Gigabit Ethernet interfaces, connections for CAN bus, USB, HD audio, two SATA ports, SD card slot, LVDS and serial DVO display support. 4 push buttons and 4 LED as control elements for the digital in- and outputs. As control elements for the digital in- and outputs, the Development Board contains a push button, three LED and a potentiometer for analog input. Signals that are available from plug connectors of the ECUcore-E660 are linked to pin header connectors and enable easy connection of own peripheral circuitry.

OpenPCS IEC 61131 programming system
The OpenPCS IEC 61131 programming system included in the Kit serves as software development platform and as debug environment for the PLCcore-E660. Thus, the module can either be programmed graphically in LD/FUB, SFC and CFC or textually in IL or ST. Downloading the PLC program onto the module takes place via Ethernet or CANopen – depending on the firmware that is used. High-capacity debug functionality such as watching and setting variables, single cycles, breakpoints and single steps simplify the development and commissioning of user software for this module.



SpiderControl MicroBrowser
The integrated Target Visualization of the PLCcore-E660 is based on the SpiderControl MicroBrowser by the iniNet Solutions GmbH. It enables for displaying of process values from the PLC as well as forwarding of operator actions to the PLC (e.g. keyboard inputs).

VMware Image Linux - ECUcore-E660
Besides OpenPCS, the PLCcore Development Kit comes with a ready-to-use development environment for writing C/C++ application which can be executed simultaneously to the PLC program. This C/C++ development environment is pre-installed in a VMware virtual machine. The player required to start the virtual machine is available free of charge. The provision of virtual machines for application development provides a number of advantages to the end-user. Installation of new software on your development PC is reduced to the VMware player. Installation of the PLCcore development environment and related project files is not necessary and therefore eliminates a number of possible pitfalls for new users. You can easily keep a working copy of your virtual machine for backup. In case of data loss you can switch to your backup virtual machine and you’ll be productive again immediately.

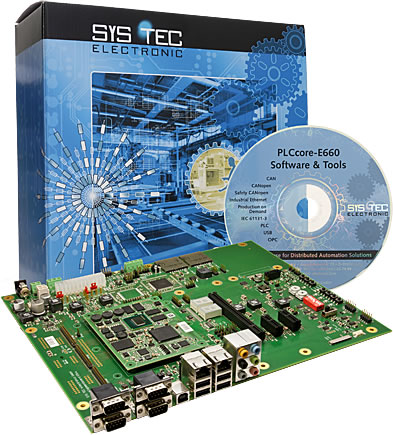

Development Kit PLCcore-E660

  • PLCcore-E660 - System on Module
  • Cooling element
  • Development Board ECUcore-E660
  • International power Supply 24VDC, 1000mA
  • RS232 cable, 1.8m
  • FTP patch cable Cat.5e, 2.0m
  • PC graphics adapter ADD2-N for connecting DVI monitors
  • Leverage tool
  • ESD handling instructions
  • OpenPCS - IEC 61131-3 Programming Environment for Windows
  • Shared process image reference application project in source code
  • VMware image with Linux cross-development tool chain for ECUcore-E660

訂貨信息

貨號 說明
KIT-172 Development Kit PLCcore-E660
PLCcore-E660 - HMI option, Development Board ECUcore-E660, Power supply, Ethernet cable, RS232 cable, CD OpenPCS - IEC 61131-3 IDE, DVD VMware Image Linux - PLCcore-E660
3393000 License Spidercontrol Web Visualization


下載

OpenPCS IEC 61131-3 programming system
Version V6.7.4 RV1.00 - english
70 MB
SYS TEC - specific Extensions for OpenPCS / IEC 61131-3
Version 6.7.4 RV1.00 - english
27 MB

如果你需要上面的資料請通過support@hkaco.com聯系我們。

相關文檔

PLCcore概念 - 白皮書 CANopen Tool Chain - Product Flyer
PLCcore-E660 - 系統手冊 CANopen Tool Chain - Product Flyer
ECUcore-E660 - 硬件手冊 CANopen Tool Chain - Product Flyer
