eBIRST? – 開關系統測試工具

eBIRST Switching System Test Tool

Switching systems are an important part of many test systems, however, the switching system is in a vulnerable place. When accidents happen that can cause a faulty device, you need a way to get the system up and running again with a minimum of effort and operator skills. That is where our eBIRST switching system test tools come in, they will:

  • Quickly determine if your switching system has faults
  • Identify where that fault is located at relay level and allow you to take fast corrective action
  • Save repair costs
  • Minimize downtime of the switching system

The eBIRST toolset consists of three different tools that support 200-way LFH, 78-way and 50-way connectors and a set of adaptors that allow connection to other connector types. A supplied application program controls the eBIRST tools via a USB2 port that also provides the tool power and controls the switching system using a Test Definition File to define the test sequence.

These tools work by measuring the path resistance at the switching system external connectors using four-wire measurements, quickly establishing whether the path is good, has increased resistance or has failed.

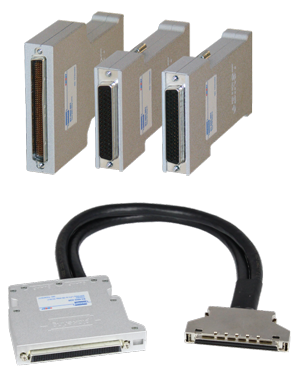

eBIRST switching system test diagnostic tools

Switching Systems Supported by eBIRST Tools

The eBIRST tools are self-contained; all you need is a USB2 port on a PC running Windows and the supplied application program. The program uses a Test Definition File created for each switching system that defines how to test the system. They can test any of our switching systems that use mechanical relays with precious metal contacts (typically contacts with a rating of 2A or less) or solid state relays. DC coupled RF systems using SMB connectors are also supported thru the use of test adapters. Each tool is generic—it will support DC coupled switching systems that use multi-way connectors on our PXI, PCI and LXI controlled switching systems

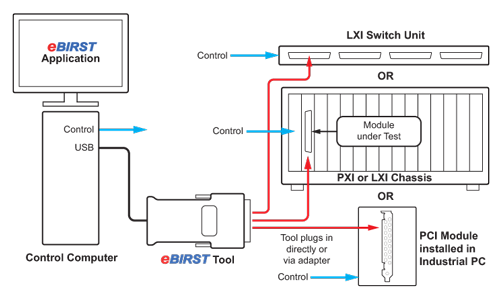

eBIRST Switching Systems Tools Diagram

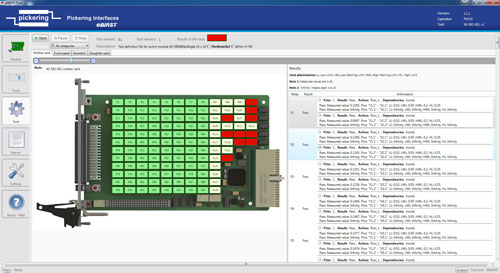

eBIRST screen shot showing failed relays

Why choose Pickering products supported by eBIRST?

Users buy switching systems to test products. When the switching system develops a fault it causes downtime, consumes an engineer’s time to diagnose the fault and delays projects and sales. So when problems occur—instead of figuring out how to identify and rectify the fault, get your eBIRST tool connect it to the system and run the test.

eBIRST tools will quickly test the switching system, locate the faulty relay and inform you what relays to replace via a graphical output. Downtime is considerably reduced and the problems of misdiagnosed faults causing ineffective repairs to be carried out are minimized.

Ordering eBIRST Tools

The tables below provide information on what eBIRST tools are needed for different types of switching products, this depends on the type of connector used on the module to be tested. For each connector two options are listed, the first column lists the parts that are essential and the second column lists the optional calibration fixture required if the user would like to independently verify the tools. The second table lists the parts required if the switching system requires the use of two tools. Some products with multiple user?connectors and a switched thru path may require the use of two tools in a master/slave arrangement to provide 100% test coverage. If two tools are required, you will also need the Slave Mode Connection Cable.

200-Way Male LFH Test Tool
78-way Female D-type Test Tool
50-way Female D-type Test Tool



Connector Type on
Module Under Test
Single Tool Parts Required Optional Parts
200-way
Female LFH
1 off 200-way Male LFH Test Tool: 93-002-001 1 off Calibration Fixture
200-way LFH: 93-002-101
160-way
Male DIN41612
1 off 200-way Male LFH Test Tool: 93-002-001
1 off 160-way Female DIN41612 Adapter PCB: 93-002-410
1 off Calibration Fixture
200-way LFH: 93-002-101
96-way
Male SCSI style
1 off 200-way Male LFH Test Tool: 93-002-001
1 off 96-way Female SCSI Style Adapter Cable: 93-002-226
1 off 96-way SCSI Style Termination Fixture: 93-016-103
1 off Calibration Fixture
200-way LFH: 93-002-101
78-way
Male D-type
1 off 78-way Female D-type Test Tool: 93-006-001 1 off Calibration Fixture
78-way D-type: 93-006-101
68-way
Female SCSI style
1 off 78-way Female D-type Test Tool: 93-006-001
1 off 68-way Male SCSI Style Adapter PCB: 93-006-401
1 off Calibration Fixture
78-way D-type: 93-006-101
50-way
Male D-type
1 off 50-way Female D-type Test Tool: 93-005-001 1 off Calibration Fixture
50-way D-type: 93-005-101
37-way
Male D-type
1 off 50-way Female D-type Test Tool: 93-005-001
1 off 37-way Female D-type Adapter PCB: 93-005-418
1 off Calibration Fixture
50-way D-type: 93-005-101
25-way
Male D-type
1 off 50-way Female D-type Test Tool: 93-005-001
1 off 25-way Female D-type Adapter PCB: 93-005-414
1 off Calibration Fixture
50-way D-type: 93-005-101
9-way
Male D-type
1 off 50-way Female D-type Test Tool: 93-005-001
1 off 9-way Female D-type Adapter Cable: 93-005-238
1 off 9-way D-type Termination Fixture: 93-003-103
1 off Calibration Fixture
50-way D-type: 93-005-101
8-way Male Power
D-type
1 off 50-way Female D-type Test Tool: 93-005-001
1 off 2x8-way Female Power D-type Adapter Cable: 93-005-236
1 off 8-way Power D-type Termination Fixture: 93-012-103
1 off Calibration Fixture
50-way D-type: 93-005-101
SMB co-axial 1 off 50-way D-type Test Tool: 93-005-001
1 off SMB Co-axial Cable Adapter: 93-005-202
1 off Calibration Fixture
50-way D-type: 93-005-101

Master/Slave Tools

Where two tools are required, use the following guide:

Connector Type on
Module Under Test
Tool Parts Required Optional Parts
68-way
Male SCSI style
(used on BRIC
modules)
2 off 78-way Female D-type Test Tool: 93-006-001
2 off 68-way Female SCSI Style Adapter Cable: 93-006-222
1 off 68-way Male SCSI Style Termination Fixture: 93-015-103
Slave Mode Connection Cable: 93-970-301
1 off Calibration Fixture
78-way D-type: 93-006-101
All Other Connectors Tool for each connector as in table above
Slave Mode Connection Cable: 93-970-301
1 off Calibration Fixture?
78-way D-type:?93-006-101

Module Support

The eBIRST tool is being continuously expanded to cover the majority of our switching systems in PXI, LXI and PCI form factors that use the connector interfaces listed. To check if your switching systems are supported contact your local sales office.

產品系列

eBIRST 50-way D-type to 9-way D-type Adapter
eBIRST 50-way D-type to 9-way D-type Adapter

Part No. 93-005-238

eBIRST adapters allow extension to other switching system connectors, including SMB

eBIRST 50-way D-type to 2x8-way Power D-type Adapter
eBIRST 50-way D-type to 2x8-way Power D-type Adapter

Part No. 93-005-236

eBIRST adapters allow extension to other switching system connectors, including SMB

eBIRST 9-way Male D-type Termination Fixture
eBIRST 9-way Male D-type Termination Fixture

Part No. 93-003-103

eBIRST termination fixture

eBIRST 8-way Male Power D-type Termination Fixture
eBIRST 8-way Male Power D-type Termination Fixture

Part No. 93-012-103

eBIRST termination fixture

eBIRST 68-way Male SCSI Termination Fixture
eBIRST 68-way Male SCSI Termination Fixture

Part No. 93-015-103

eBIRST termination fixture

eBIRST 96-way SCSI Termination Fixture
eBIRST 96-way SCSI Termination Fixture

Part No. 93-016-103

eBIRST termination fixture

eBIRST 78-way D-type to 68-way Female SCSI Adapter
eBIRST 78-way D-type to 68-way Female SCSI Adapter

Part No. 93-006-222

eBIRST adapters allow extension to other switching system connectors, including SMB

eBIRST 50-way D-type to 25-way D-type Adapter
eBIRST 50-way D-type to 25-way D-type Adapter

Part No. 93-005-414

eBIRST adapters allow extension to other switching system connectors, including SMB

eBIRST 50-way D-type to 37-way D-type Adapter
eBIRST 50-way D-type to 37-way D-type Adapter

Part No. 93-005-418

eBIRST adapters allow extension to other switching system connectors, including SMB

eBIRST 78-way D-type to 68-way Male SCSI Adapter
eBIRST 78-way D-type to 68-way Male SCSI Adapter

Part No. 93-006-401

eBIRST adapters allow extension to other switching system connectors, including SMB

eBIRST 200-way LFH to 96-way SCSI Adapter Cable
eBIRST 200-way LFH to 96-way SCSI Adapter Cable

Part No. 93-002-226

eBIRST adapters allow extension to other switching system connectors, including SMB

eBIRST 200-way LFH to 160-way DIN Adapter
eBIRST 200-way LFH to 160-way DIN Adapter

Part No. 93-002-401

eBIRST adapters allow extension to other switching system connectors, including SMB

eBIRST Slave Mode Connection Cable
eBIRST Slave Mode Connection Cable

Part No. 93-970-301

Required to connect two eBIRST tools together for applications requiring two tools to test thru paths.

eBIRST 50-way D-type Coaxial Adapter
eBIRST 50-way D-type Coaxial Adapter

Part No. 93-005-202

eBIRST adapters allow extension to other switching system connectors, including SMB

eBIRST Calibration Fixture 200-way LFH
eBIRST Calibration Fixture 200-way LFH

Part No. 93-002-101

These optional calbiration fixtures are used to verify that the eBIRST tool is working

eBIRST 78-way D-type Calibration Fixture
eBIRST 78-way D-type Calibration Fixture

Part No. 93-006-101

These optional calbiration fixtures are used to verify that the eBIRST tool is working

eBIRST 50-way D-type Calibration Fixture
eBIRST 50-way D-type Calibration Fixture

Part No. 93-005-101

These optional calbiration fixtures are used to verify that the eBIRST tool is working

eBIRST 50-way D-type Test Tool
eBIRST 50-way D-type Test Tool

Part No. 93-005-001

eBIRST test tools

eBIRST 78-way D-type Test Tool
eBIRST 78-way D-type Test Tool

Part No. 93-006-001

eBIRST test tools

eBIRST 200-way LFH Test Tool
eBIRST 200-way LFH Test Tool

Part No. 93-002-001

eBIRST test tools
