| 物理 |
| 尺寸(高、寬、深) |
60x162x91mm |
| 溫度 |
0°...55°C |
| 濕度 |
10 - 95% non-condensing (VDE 0110) |
| CPU |
| 處理器 |
NXP i.MX 7 |
| 處理器核 |
Dual Cortex-A7 |
| MPU速度(MHz) |
1000 |
| MIPS |
3800 |
| RTC |
Yes |
| 溫度傳感器 |
Yes |
| 存儲器 |
| RAM |
1024 MB |
| 保存 |
8GB eMMC |
| 軟件 |
|
| 基本安裝 |
Linux OS (Debian Linux, Jessie 8.10), I/O drivers, Node-RED with nodes for I/O drivers, OpenJDK & Mono |
| 附加許可 |
OpenPCS RT, OPC UA server for OpenPCS |
| 可選 |
第三方軟件：可經由Debian OS資源庫下載 |
| 連接性 |
| ETH |
2 (Secure separation of IT & OT) |
| CAN |
2 (CANopen, CAN LAyer 2) |
| SIO |
3 (RS485 Modbus, RS232 freely available) |
| USB Host |
1 |
| SD Card |
1 |
| Linux console |
1 (Version as USB or RS232) |
| 云 |
可用于云供應商例如IBM Watson |
|
| I/O接口 |
| DI 24 VDC |
16 (數據隔離性解耦) |
| A/B編碼器 |
1 (交換功能用于1 DI和高速計數器) |
| 高速計數器 |
1 (交換功能用于1 DI和A/B編碼器) |
| DO 24VDC, 0,5 A |
16 |
| PWM |
2 (交換功能 - 依賴于所用的PWM通道) |
| Relais 230VAC, 1 A |
2 |
| AI |
4 (可配置: 0...10VDC, 0...20mA/4...20mA) |
| 控制 |
| 開關 |
Run-/Stop |
| |
Config |
| |
Reset |
| |
Boot |
| 狀態LEDs |
Power CPU |
| |
Power periphery |
| |
Run |
| |
Error |
| |
& more |
| 服務服務 |
SFTP/SSH |
訂貨說明
| 貨號 |
說明 |
| 16061000 |

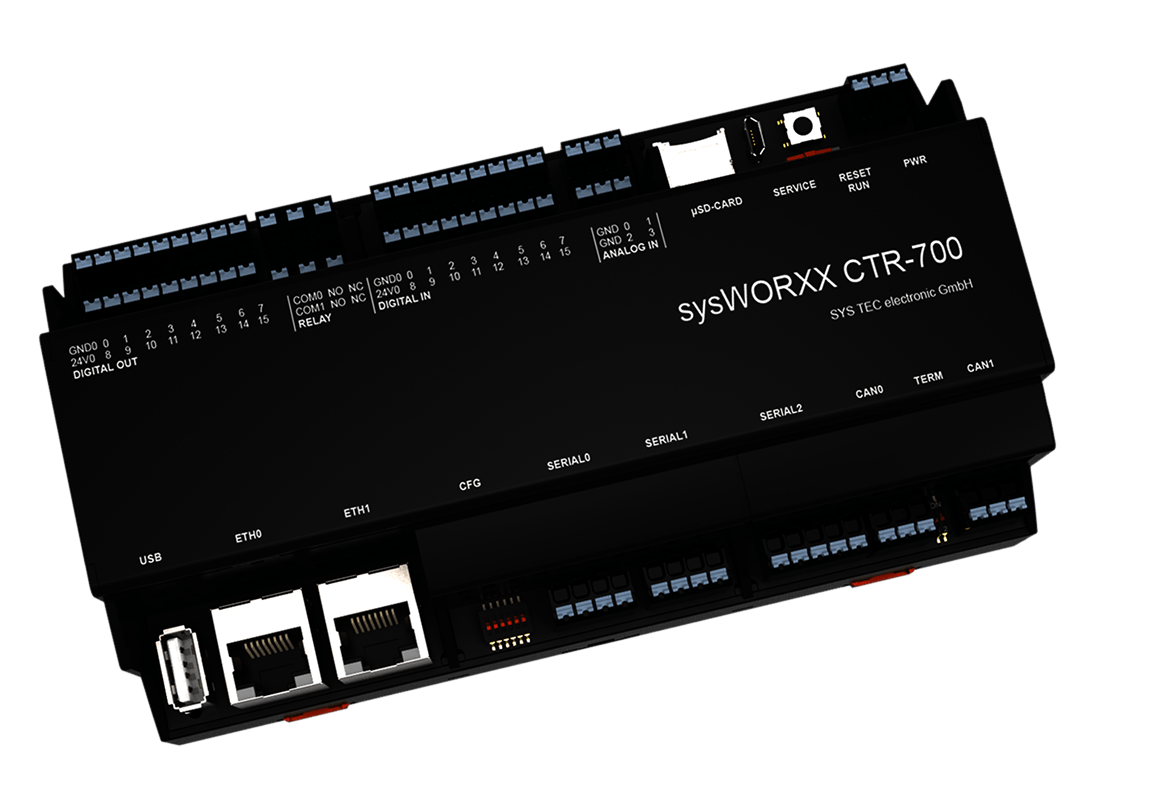

sysWORXX CTR-700 incl. microUSB cable |
| KIT-177 |
sysWORXX CTR-700 BSP Kit |
| 16062000 |
Meshnet Extension sysWORXX RFG-2.4 |
| 240011 |
Runtime license OpenPCS RT sysWORXX CTR-700 |
| 240012 |
Runtime license OPC-UA base server sysWORXX CTR-700 |
| 149018 |
Power supply unit and connection cable for laboratory and test requirements |
|
